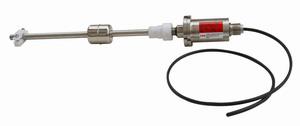

Type：magnetostrictive level transducer
Illustrate：FWD-L Series Magnetostrictive displacement sensor to provide a variety of output modes, Including analog voltage and current, RS485 and other digital content. Digital output signal can provide a number of position and velocity output. Detailed multi-output model, to provide customers with more choices.
Main features:
Non-contact, Never worn; High-resolution, high precision, high stability, high reliability, fast response time, long working life; sensors without re-calibration, are not regularly maintained.
Application:
◆Servo gas, hydraulic cylinder piston position feedback or preset
◆ position feedback or pre-grinding machine
◆ Casting and Forging machine displacement control
◆ positioning and monitoring of injection molding
◆ Wood processing position control
◆ turbine gas block valve opening detection and control
◆ Turbine Guide Ye Kai-degree detection and control
◆ other mechanical positioning and displacement detection
Parameters:
| Measurements | Position or velocity |
| Measuringrange (mm) | 80-5000（Can be customized according to user） |
| Nonlinearity (±%FS) |
0.05%FS；Range 200mm maximum error of the following 0.1mm |
| Repeatability error | ≤0.002%FS |
| Resolution | ≤0.02mm |
| Sluggish | ≤0.002%FS |
| Temperature | ±50ppm/℃ |
| Operating Voltage | +11VDC～+36VDC |
| Current: | ≤10mA(Increase or decrease with changes in range) |
| Operating Temperature | T1:-25～+55℃, T2:-40～+85℃, T3:-50～+125℃ |
| Load Characteristics: |
Maximum voltage output current output load resistance 3kΩ 600Ω maximum load resistance |
| Output Type | 0～5V、1～5V 、0～10V、4～20mADC、RS485 |
| Working pressure | 34MPa |
| Electronic storage enclosure material |
Aluminum (user can specify custom 304 stainless steel special structure) |
| Measuring rod material | OCr18Ni9(304)、316L Stainless steel (special custom) |
| Connection Type | M18x1.5、M20x1.5、3/4-16UNF（british system） |
| Lead way |
1. Straight out of cable (standard length: 3m, can also be customized according to user requirements) 2.Air Plug (does not apply to flameproof products) 3.Terminal Blocks |
| Enclosure protection class | IP67 |
FWD-F series Magnetostrictive liquid level sensor
◆ level measurement and control industrial field
◆ Oil Tank Level Measurement
◆ Chemical Process Level Control
◆ pharmaceutical tank level control
◆ Food & Beverage tank control
◆ Dam Water Level Monitoring
◆ water and wastewater treatment
Parameters:
| Measurements | Position or velocity |
| Measuringrange (mm) | 300-5000（Can be customized according to user） |
| Nonlinearity (±%FS) |
0.05%FS；Maximum error is 0.5mm measuring range 1000mm |
| Repeatability error | ≤0.002%FS |
| Resolution | ≤0.02mm |
| Sluggish | ≤0.002%FS |
| Temperature | ±50ppm/℃ |
| Operating Voltage | +11VDC～+36VDC |
| Current: | ≤8mA(Increase or decrease with changes in range) |
| Operating Temperature |
T1:-25～+55℃, T2:-40～+85℃, T3:-50～+125℃ |
|
Load Characteristics: |
Voltage output, maximum load resistance 3kΩ |
| Output Type | 0～5V、1～5V 、0～10V、4～20mADC、RS485 |
| Working pressure | 10MPa |
| Electronic storage enclosure material |
Aluminum (user can specify custom 304 stainless steel special structure) |
| Measuring rod material | OCr18Ni9(304)、316L Stainless steel (special custom) |
| Connection Type | M18x1.5、M20x1.5、3/4-16UNF（british system） |
| Lead way |
4、 Straight out of cable (standard length: 3m, can also be customized according to user requirements) 5、 Air Plug (does not apply to flameproof products) Terminal Blocks |
| Enclosure protection class | IP67 |
