Type：CXST40 integrated temperature transmitter
Illustrate：It can measure the gas and liquid .It can used for the application, like water supply system ,hydraulic, pneumatic system, cooling system ,heating system ,air conditioning system and automation engineering etc..
CXST40 integrated temperature transmitter
Application
It can measure the gas and liquid .It can used for the application, like water supply system ,hydraulic, pneumatic system, cooling system ,heating system ,air conditioning system and automation engineering etc..
Technical data
△Range:-50-0℃,-50-50℃;0-50℃;0-80℃;0-100℃;0-120℃,0-150℃,0-200℃
△Linearity: <0.1%
△Accuracy: ±0.2K＋0.2%FS
△Resolution: 0.1K
△Pressure proof: Ø6type probe 40 bar,Ø8 type probe 100 bar
△Temperature effect: 0,1 K / 10 K
△Response time: t50， 2.3 S / t90，5.4S
△Working voltage: 12…30Vdc
△Unload current: 4-20mA, Signal current:0-10Vtype：8mA
△Simulation overload resistance : 4…20mA type:500Ω0…10V Type: 5KΩ
△Electric protection: Reverse polarity , overload
△Sensor: PT100
△Environment temperature: -25…80℃
△Protective class: IP65
△Housing material: stainless steel
△Wetted part material: stainless steel 1.4571
△Electric connection: terminal connection
Wiring
4...20mA

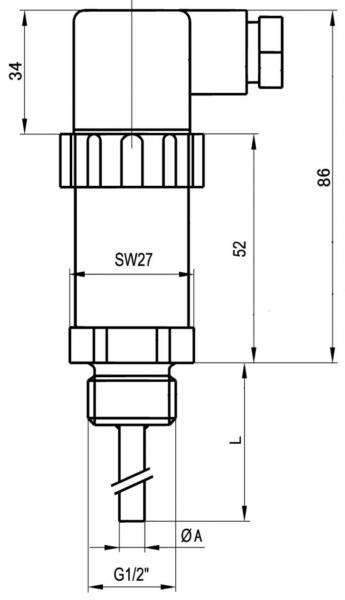

0...10VDimension
Note: Please check the type selection tablet for A、L
Optional accessories - DD01 dimension
Optional accessories - DD01
The display unit DD01: This unit can match the ST series temperature transmitter with 4-20Ma to use it . The function is display the temperature directly , also it can set the switch signal output according to set value( the function is option , it should mention it before ordering)
Feature
● Display physics value: -1.9.9.9--9.9.9.9
● Pressure drop less than :4.5V, 3mA
● Can choose 2 channels switch signal output (optical coupling output), the switch signal can set .
● The key-pressure is programmable. Can set : Zero/Full scale/decimal/damping time/switch alarm/normally open and normally close output
●LED display，can read it under the dark situation .
●Suit for all kinds of 2-wire transmitter. Do not need power
DD01 Type selection tablet
| DD01 | A | Description |
| DD01 | 4…20mA Local display | |
| A | 4...20mA Output | |
| Y | 1 channel switch signal output | |
| L | 2 channels switch signal output |
Type selection tablet
| CXST40- | /0-100 | M14 | /6 | /25 | M | Description |
| CXST40- | PT100 temperature sensor | |||||
| /50-0 | Range :-50…0℃(can customize it) | |||||
| /50-50 | Range :-50…50℃(can customize it) | |||||
| /0-50 | Range :0…50℃(can customize it) | |||||
| /0-80 | Range :0…80℃(can customize it) | |||||
| /0-100 | Range :0…100℃(can customize it) | |||||
| /0-120 | Range :0…120℃(can customize it) | |||||
| /0-150 | Range :0…150℃(can customize it) | |||||
| /0-200 | Range :0…200℃(can customize it) | |||||
| M14 | Analog output:4…20mA | |||||
| /V0 | Analog output:0…10V | |||||
| /6 | Probe diameter Ø6 | |||||
| /8 | Probe diameter Ø8 | |||||
| /25 | Probe length L is 25mm | |||||
| /50 | Probe length L is 50mm | |||||
| /75 | Probe length L is 75mm | |||||
| /100 | Probe length L is 100mm | |||||
| M | M Male screw |
Display control meter CXDF001: This display control meter match the CXST40 series PT100 temperature sensor to use it . The function is that can display and control the temperature . And it can have alarm output signal according to the set value .
Feature:
● 4-digit LED display
● Input standard: J， K，S，T，E，B，R，N，C，DIN-PT100，JIE-PT100 ，4~20mA， 0~50mV，1~5V，0~10V
● Control: P control:0.0~300.0% F.S,1 , PD control: proportional band0.0~300.0％ F.S1 Differential coefficient:0~900 sec1 , ON / OFF Control: delay range 0~2000
● Sampling period: 0.5 s
● Working temperature: 0…50℃
● Humidity: 90%
CXDF001 Type selection table
| CXDF001- | - | M | L | A | R1 | C4 | T | Description |
| CXST40- | Display control meterCXDF001 | |||||||
| Z | Outline 96×96(square) | |||||||
| H | Outline 96×48(Horizontal type) | |||||||
| L | Input: linearity signal | |||||||
| P | Input: RTD | |||||||
| T | Input: Thermocouple | |||||||
| A | Main Output: 4…20mA | |||||||
| B | Main Output: fixed relay trigger output | |||||||
| O | No assistant output | |||||||
| Q1 | Assistant output :one channel relay alarm | |||||||
| Q2 | Assistant output :two channels relay alarm | |||||||
| Q3 | Assistant output :three channels relay alarm | |||||||
| O | No communication output | |||||||
| R2 | RS232 | |||||||
| R4 | RS485 | |||||||
| D | DC 24±10% | |||||||
| T | AC 90…260V |
