Miniature waste liquid flowmeter
Wastewater treatment in recent years a growing manufacturing industry, in the full set of machinery and equipment, be sure to use meter to metrological verification wastewater and wastewater into a shape of a variety of organic chemistry, such as acid, alkali corrosion, weak acid, alkaline, with a residue of fine particulate matter, then what kind of flow meter to monitor it for this kind of wastewater flow and can completely available?
The basic principle of the micro-flowmeter is based on Faraday's law of electromagnetic induction.The precise measuring tube of the flowmeter is a non-conductive alloy short tube lined with insulating material.Two electrical stages are fixed along the tube through the azimuth wall thickness on the precise measuring tube.The electrical head is flush with the inner surface foundation of the lining.When the excitation regulator is actuated by a double square wave monopulse excitation regulator, the electromagnetic field in operation will result in a position perpendicular to the center line of the accurate measurement tube with a relative density of B in magnetic flux.At this point, if there is a certain conductivity of fluid mechanics through the accurate measurement tube, laser cutting magnetic induction line magnetic induction out of the electromotive force E.
Principle of miniature waste liquid flowmeter
The electromotive force E is directly proportional to the relative density of magnetic flux B.The electromotive force E (flow data signal) is detected by the electrical stage and sent to the converter according to the cable.After the converter increases the flow data signal, it can display the information fluid dynamics flow, and output monopulse, analog current and other data signals for flow control and adjustment.

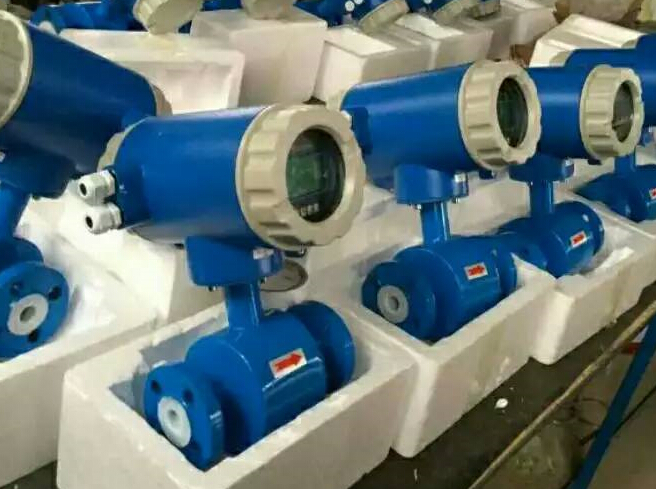

Micro-sized liquid flowmeter for waste water
1. The water flow, flow, accumulation, working pressure, working attitude and other information of the digital display instrument;
2. Can directly print out all the searched information;
3. All dashboard information can be immediately exported to the electronic computer;
4. The flow trend chart of the searched dashboard can be immediately seen;
5. The flow trend chart can be printed directly;
6. Check the working attitude of the dashboard on the spot and check whether there is any alarm on the dashboard;
7. Able to display information in tabular form the annual, monthly and daily water demand of all dashboards;
8. The form can be printed directly;
9. The form can be exported to the electronic computer immediately;
10. All dashboard information can be immediately backed up to the computer.
Shanghai porcelain city has a lot of technical accumulation, so it can also customize the flow meter according to customer requirements, the design department can interact within 3 weeks, which is even faster than the delivery of foreign standard flow meter.Major application areas include metrology, hydraulic or supervisory technology, filling, glue or the monitoring of mixing ratios in a variety of industrial sectors.Shanghai porcelain flow meters are used in plastics, polyurethane, chemical, pharmaceutical, paint and coatings, hydraulic and automotive processing plants and two-component processes worldwide.
