CIXI gear flow meters can measure many medium such as diesel oil, offset ink, perfume, skydrol, lubricating oil, clear lacquer, Hydraulic oil, grease, cavity waxes and Polyurethane adhesive resin.



Today let us talk about the high viscosity micro flow meter used for measuring polyurethane adhesive.



One of our Brazil customer ask us to give him a solution about how to control the mixing ratio of Polyurethane adhesive by flow meters.



They are doing a job together with SIkaflex to apply a polyurethane(medium) based adhesive in the mixing ratio of 10: 1 (data sheet attached) the volume to be applied is 50 grams per piece.

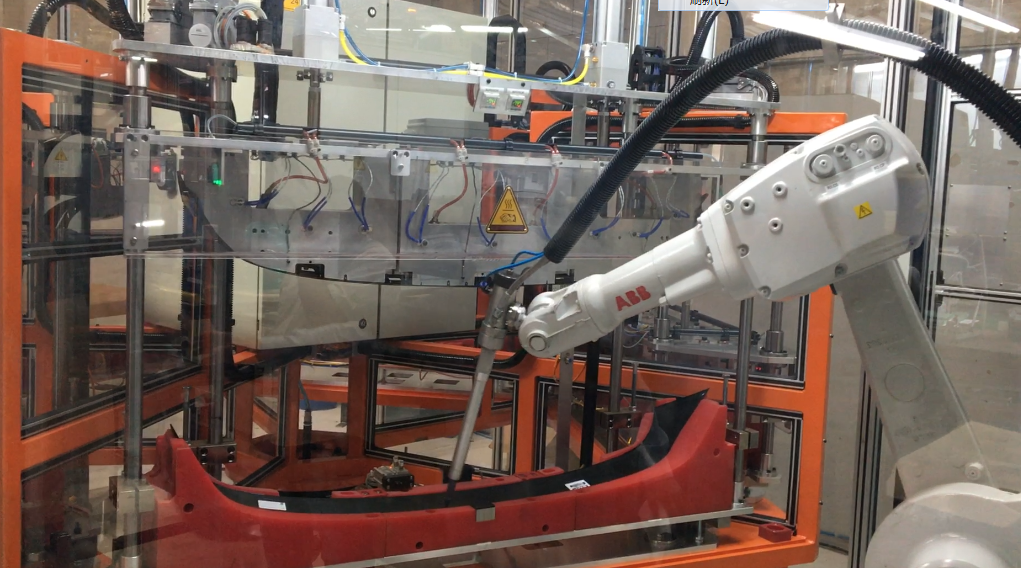

This is the spoiler of the in the car of the Volkswagen released month, as this adhesive does not allow the variation of the mixture so they have the idea of test with two flow meters installed before
the mixer controlling by means of electric pulses the speed of the gear pumps by means of servo drivers.





They need to build equipment to apply adhesives, buy the robots and build the glue cell and the flow meter to control the variations of the mixture, to ensure that there is a change of temperature.



And finally our engineer suggest our G series micro flow meters. Especially G 0.015 model.



G0.015 model main specification as follows:

CX-G0.015-B-AL

Flow range:0.005-5L/minAccuracy:0.5%

Working temperature: -30~80C

Working pressure: 200bar

Output:pulse(hall sensor or reed switch)

Power: 4-26VDC

Housing material: anodized aluminum

Gear material: SS316L



It can high accuracy measure the Polyurethane adhesive. it is big circular gear and not easy blocked.



Features of G series gear flow meter.

High accuracy: 0.5% and 0.2%

High pressure: 1000bar

Large range ratio: 100:1

High temperature: 250C

Main application:

Sealant/Adhesive Dispensing

Fluid Fill

Automotive Paint

Hydraulic test stand

Common rail test bench



If you are also looking for a precision flow meter with high viscosity and low flow,
please contact winny: sales01@cxflowmeter.com
