Chemical flow meter type





Chemical flow meters can be classified based on different working principles and structures. Here are some common chemical flow meters and their characteristics:



Vortex flow meter: suitable for flow measurement of medium to high viscosity liquids, with high accuracy and good stability. Set up a vortex generator in the fluid, generating regular vortices alternately from both sides of the vortex generator, and calculate the flow rate based on the frequency of vortex generation.



Electromagnetic flow meter: Based on Faraday's law of electromagnetic induction, it measures fluid flow rate by utilizing the characteristics of fluid conductivity. Suitable for flow measurement of conductive liquids and gases, with high accuracy and strong reliability.



Differential pressure flow meter: In the chemical industry, it belongs to a large number of types and quantities of flow meters, including wedge flow meters, balance flow meters, flow nozzles, Venturi tubes, and orifice plates. These flow meters all have the same measurement principle, but the appropriate type needs to be selected according to the actual operating conditions.

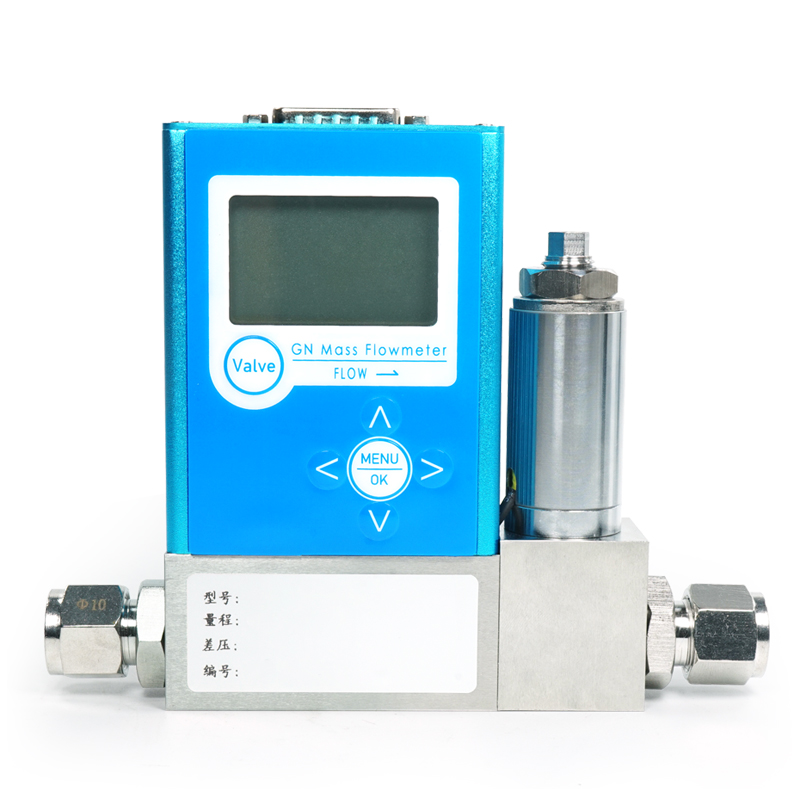

Mass flow meter: mainly used to measure the mass flow rate of gases, liquids and other media, with high accuracy and good stability. In the chemical industry, Coriolis mass flow meters are the most commonly used type, suitable for flow measurement of gases and liquids.



Rotary flow meter (float flow meter): One of the universal flow meters, mainly used for measuring medium and small caliber flow in areas with relatively low requirements.

Positive displacement flow meters: including various types such as elliptical gear type, waist wheel type, double rotor type, scraper type, piston type, etc.



In addition to the above types, there are also some other chemical flow meters, such as pulse flow meters, ultrasonic flow meters, thermal flow meters, open channel flow meters, etc. These flow meters each have their own characteristics and are suitable for different application scenarios and media types. When selecting a chemical flow meter, it is necessary to choose the appropriate type based on specific measurement requirements and medium characteristics.



To learn more about how to choose chemical flow meters, specific prices, installation, and other issues, please feel free to consult CIXIFM winny:
