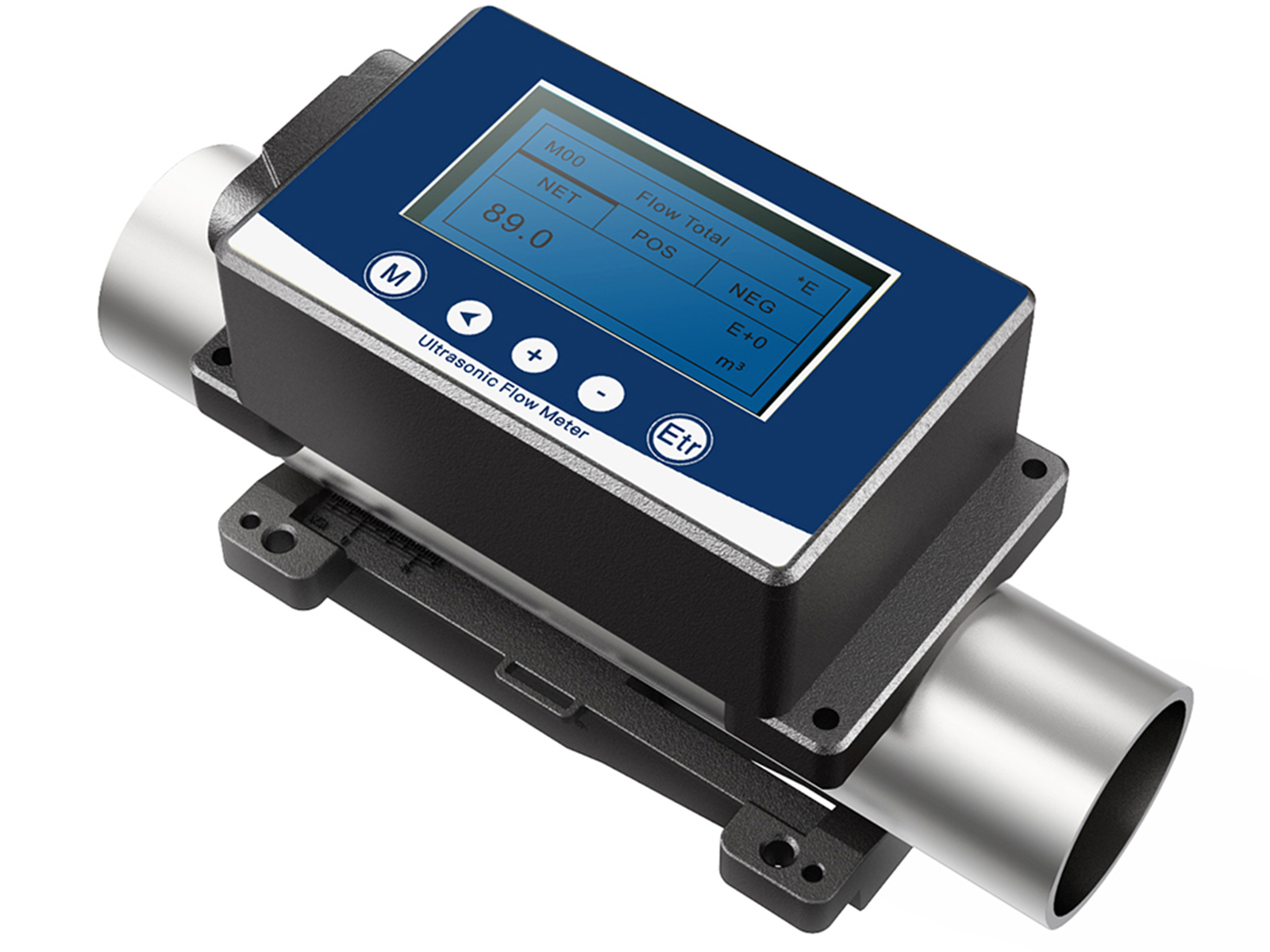

Clamp on Liquid Flow Meter
The clamp-on liquid flow meter is an instrument for measuring liquid flow. Its structure and working principle are unique. The following is a detailed introduction to the clip-on liquid flow meter:
constitute:
The clamp-on liquid flow meter mainly consists of three parts: clamp, sensor and converter.
working principle:
Clamps are used to hold liquids in pipes.
When the liquid passes through the clamp, the pipe will experience a certain degree of extrusion and deformation, causing the pressure difference between the upstream and downstream to change.
The sensor measures this change in pressure difference and converts it into an electrical signal.
The converter converts this electrical signal into flow information and displays it.
advantage:
High accuracy: Clamp-on liquid flow meters usually have high accuracy, and the error range is usually controlled within ±0.5%.
Non-contact measurement: No direct contact with the liquid, reducing the possibility of wear and contamination.
Easy installation: Due to its clamp-on design, installation is relatively easy and requires no cutting or modification of the pipe.
application:
Clamp-on liquid flow meters are widely used in many fields such as industry, agriculture, water treatment, and thermal systems.
In industry, it can be used to measure and control fluid flow rates to improve production efficiency.
In agriculture, it can be used to measure the amount of liquid required for crop growth, as well as the flow of pesticides, fertilizers, etc.
In the water treatment industry, water supply quality is ensured and the flow of various toxic substances is measured.
In thermal systems, it can be used to ensure the normal operation and safety of the system.
Precautions:
When installing, make sure the liquid flow direction is consistent with the direction of the arrow indicating the flow direction on the sensor housing.
The upstream straight pipe section should be ≥20dn, and the downstream straight pipe section should be ≥5dn (dn is the inner diameter of the pipe).
To sum up, with its unique structure and working principle, the clamp-on liquid flow meter has demonstrated its advantages of high precision, non-contact measurement and easy installation in many fields,
and has become an important tool for liquid flow measurement.
and has become an important tool for liquid flow measurement.
