hot melt adhesive gear metering pump selection
Email: sales01@cxflowmeter.com
whatsapp:008618049841995
Today, a customer inquired about the selection of hot melt adhesive metering pump and provided the following information:
Medium: Hot melt adhesive
Flow rate: 0-100L/H
Temperature: 220-250 ℃
Melting point: 185 ℃
316 material insulation jacket is required
The commonly used flow rate in the system is 30-50L/H
The viscosity has not been provided by the customer yet. Please follow the conventional hot melt adhesive speed first
After a detailed analysis by our technical manager,

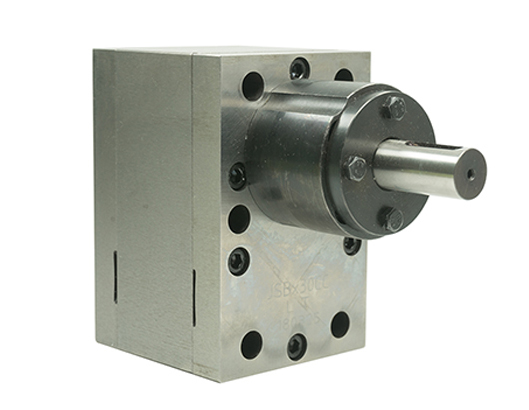

Recommend using the CX-B-31.5CC metering pump for him, here is the parameter information of our gear pump:
Medium: Hot melt adhesive
Speed: 10-65 revolutions per minute (adjustable speed)
Normal displacement: 30-100L/H
Voltage: 380 50HZ
Tightening element: 12.9 high-strength screw
Drive power: 2.2KW
Heating method: electric heating
Heating power: 2KW
Pump body material: High temperature alloy steel
Gear material: High temperature alloy steel
Equipped with a 2.2kw variable frequency motor
Hardened reducer
Universal coupling
Gearbox connector
Supporting P20 control system
PID digital instrument+frequency conversion control mode can automatically control pressure, temperature, and speed to meet the high extrusion needs of users. The system comes standard with pressure, temperature, complete set, outlet and inlet pressure sensors, and high-performance frequency converters.
If you want to learn more about the selection and quotation of hot melt adhesive metering pumps, please contact us, and we will recommend the most suitable precision metering pump for you
