Water flow switch
Email: sales01@cxflowmeter.com
whatsapp:008618049841995
Today, a customer inquired about a water flow switch and provided the following information. They would like to know
which type of flow switch is more suitable for us
which type of flow switch is more suitable for us
Connection method: 1-inch external thread.
Suitable for pipes ranging from 1 inch to 8 inches.
Maximum working pressure: 10 bar.
Maximum flow temperature: 110 ℃.
Storage temperature: -20 ℃ -80 ℃.
Rated voltage/current: 24VAC/10A.
Protection level: IP54
Coated steel shell
Brass connector
Blade: Stainless steel
Waterproof corrugated pipe: copper zinc alloy.
After analysis, our technicians recommended it to him

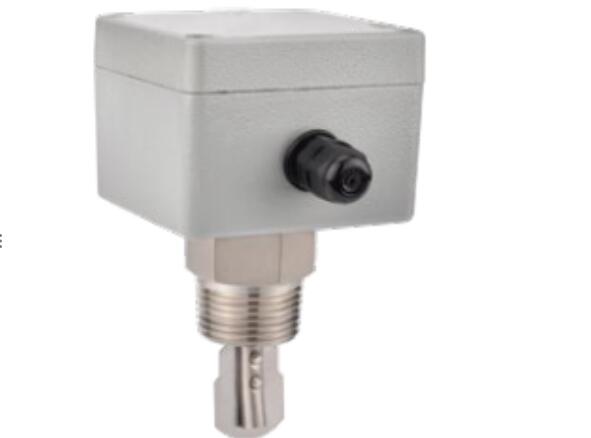

CX-FS-FB11 target flow switch, here is the detailed information of this flow switch:
Target switch (baffle)
-Repeatability: ± 2.5% of total range
-Wiring method: Terminal wiring
-Output: Switch normally open+normally closed (250VAC, 3A 24VDC)
-Pressure resistance: 40bar (stainless steel)
-Average pressure loss: 0.08 bar (at maximum flow rate)
-Environmental temperature: -25~80 ℃
-Medium temperature: Stainless steel material 180 ℃
-Interface thread: R1 external thread
-Protection level: IP67
-Material: Body: Stainless Steel
-Shell Material: Engineering Plastic/Zinc Alloy
Process connection: stainless steel
-Shield: Stainless steel
If you also have selection and quotation requirements for flow switches, please feel free to consult CIXIFM winny:
Email: sales01@cxflowmeter.com
whatsapp:008618049841995
