Type： CX-FS-FB11 baffle flow switch
Illustrate：Baffle flow switch is used for gas and liquid . Suitable for industrial automation / mechanical equipment/compressed air industry /refrigeration and air conditioning .
CX-FS-FB11 Baffle flow switch
Instroduction
CX-FS-FB11 series Baffle flow switch , also known as Paddle flow switch and flow switch .There are 5 types mechanical baffle .Suitable for the pipe diameter DN25-DB150 , the set range is 20-1800L/min (water) .It is mechanical switch output (250VAC,3A) . Suit for several kinds of medium and with high reliable .
Application
Baffle type flow switch is one kind of mechanical flow switch , also known as paddle flow switch .When the medium rushing at the vane ,the vane will swing .It will change the relative position of the magnet and reed contactor .Further ,stimulate contactor and make it close or open .Once the medium was broken ,the vane will back to the original position. Stimulate the reed contactor again ,the repellency of two magnets will provide power which can reset the flow switch .At the time ,the contactor will back to the previous state . It is with built-in micro-trigger switch .
Feather
1, With extremely small pressure loss 2, Good repeatability 3,With high anti-stain ability 4,Accurate switch setup through knob 5,The mechanical part isolate with electric part totally .6,It will provide 5 kinds of baffle. When small flow rate in big diameter pipe or the pipe is not fulfill it , user can change it according to the field situation . Also , it make one type flow switch to suit for different size pipe .
Technical data
△Diameter: DN25…DN150
△Set range: 20…1800L/min(water)
△Repeatability: ±2.5%FS
△Connection : terminal type
△Output: Mechanical switch NO+NC(250VAC,3A)
△Pressure proof: 16 bar
△Average pressure loss: 0.08bar( at max.flow rate)
△Ambient temperature: -25…80℃
△Medium temperature: 0…90℃
△Interface screw: G1”pipe screw
△Protective class: IP33
△Material: Main body: stainless steel, Process connection: brass ,connection rod: brass ,baffle: stainless steel , Seal: NBR, housing :ABS
△Weight: 0.55kg

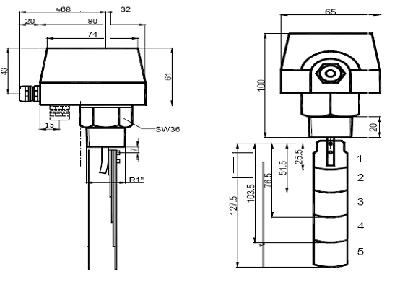

Dimension
Wiring Installation
Note : the installation position will effect the switch value .
Medium
1. It should mention the medium direction , medium ,pipe diameter and the expected set value ,when placing the order . Then we can set it before leaving factory .
2,If the medium is viscous medium , please notice the viscosity , temperature and medium .
3. If the medium is gas , please notice the pressure( meter pressure /absolute pressure) ,temperature and medium .
Warranty and Service
1.Warranty
The manufacturer provides one year warranty on all products, free of charge, but the users should be responsible for the one-way transportation fee from the customer to the factory.
2. Service
The manufacturer provides instrument installation for our customers, and the charges will be made according to the cost.
For any hardware failure of the instrument, we recommend that our customers send back the instrument to our factory for service, due to the fact that the instrument is made of microprocessors and it will be difficult to perform field maintenance. Before sending back the instrument, please try to contact the factory first to make sure what the problem is.
For other operational problems, please contact our service department by telephone, fax or email and internet. In most cases, the problem could be solved immediately.
For other operational problems, please contact our service department by telephone, fax or email and internet. In most cases, the problem could be solved immediately.
