Type：CX-FS-FPD20 pointer display type piston flow switch
Illustrate：CX-FS-FPD20 Pointer display type piston flow switch is designed for control flow,Shows the instantaneous flow or total flow
CX-FS-FPD20 Pointer display type piston flow switch
Brief introduction
1.Analog or switching signal output
2.Shows the instantaneous flow or total flow
Principle
CX-FS-FPD20 piston flow switch is contains a magnetic piston that is supported by a precision spring, it can pull the piston to move backward, the magnetic piston can strike the external microswitch or reed pipe
Pointer type flow meter convertor is optional,that shows the instantaneous flow.Digital flow convertor is optional,that shows the instantaneous flow and total flow.
Analog or switching signal output
Feature
- Metal structure for the inner side
- Pointer type flow meter convertor is optional
- The switch is high reliability and high repeatability
- The mechanical part and the electronic part are totally insulated
- High pressure resistant
- Normally open output
- High contact capacity
| Medium | liquid or gas | |
| Repeatability | ≤±3%full scale | |
| Pressure | 200bar（stainless steel type）100bar（brass type） | |
| Output | normally open output | |
| Contact capacity | 240VAC / 110VDC 1.5A | |
| Ambient temperature | -20…70℃ | |
| Medium temperature | 0…70℃ | |
| Protection | IP65 | |
| Outlet | M12*1 | |
| Material | Electronic body | PC |
| Switch body | stainless steel / brass nickel plating | |
| Spring | stainless steel | |
Application
1.hydraulic pressure；2.lubrication；3.recycle system

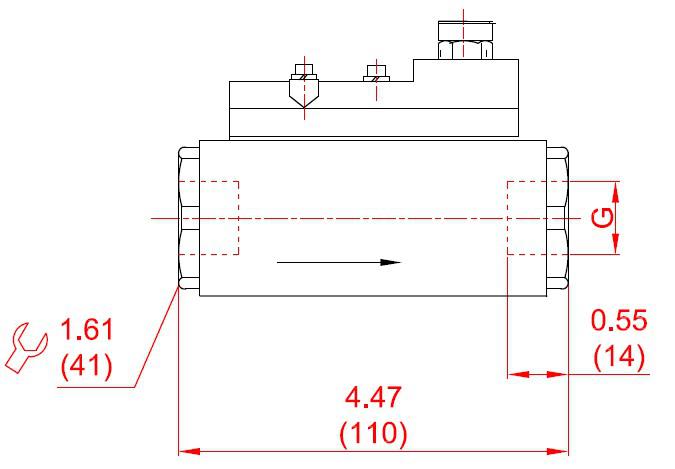

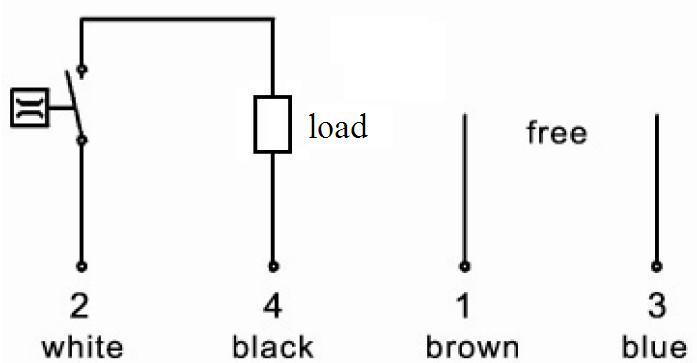

Wiring diagram
Parameter table
| G |
Max flow （water L/min） |
Switching point setting range （water L/min） |
|
| G1/4 | 10 | 0.04…4 | |
| G3/8 | 20 | 0.04…4 | 1…10 |
| G1/2 | 40 | 1…10 | 2…20 |
| G3/4 | 60 | 3…30 | 4…40 |
| G1 | 80 | 4…4 | 6..60 |
