Type：CX-FLM-RF-260S small plastic float level switch
Illustrate：This type flow switch has small structure and wide usage and suit for the external environment . Bar color is orchid , bar length is 67mm、90mm、100mm, diameter is 28mm , thickness is 28mm , screw is 15mm ,M10X1 .
Small plastic float level switch
This type flow switch has small structure and wide usage and suit for the external environment .
Bar color is orchid , bar length is 67mm、90mm、100mm, diameter is 28mm ,
thickness is 28mm , screw is 15mm ,M10X1 .
Principle:
The sensor install one or more reed switch , then this pipe drill through one or
more empty and inbuilt ring magnetic float ,the reed switch will have the relative action and the
resistance will change when the float with magnet drift up and down and emit a switch signal .
Main parameter:
Installation :top or bottom-mounted (vertical +/-20 Celsius degree)
Screw :M10
Electric connection :300mm, UL1430 AWG22

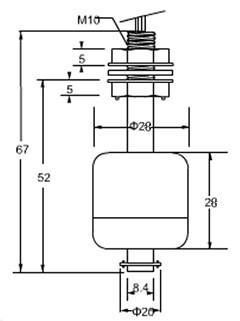

Float dimension :Dia.28 * dia.8.50*28
Working pressure :15 Bar
Working temperature :-10~75℃
Accuracy :+/-2mm
Switch type :N.C./N.O
Working voltage :220VAC
Working current :0.70A
Contact capacity :50w
Working life :1000000times
