Type：CX-RF-MHG series side-mounted float level switch
Illustrate：Can be directly installed on the vessel wall point ,it is very convenient to install . The switch adopt stainless steel material and isolate with the outside . So it has long working life , anti-explosion ,anti-corrosion and other characteristics .
Side-mounted float level switch
CX-FLM-RF-MHG(CX-FLM-RF-MHG1,CX-FLM-RF-MHG2)
Installation : horizontal side mounted ( G1 is exterior,G2 is inbuilt）
Installation screw:G1 is NPT1/2”、G2 is M10～M16
Electric connection :300mm, UL1430 AWG22

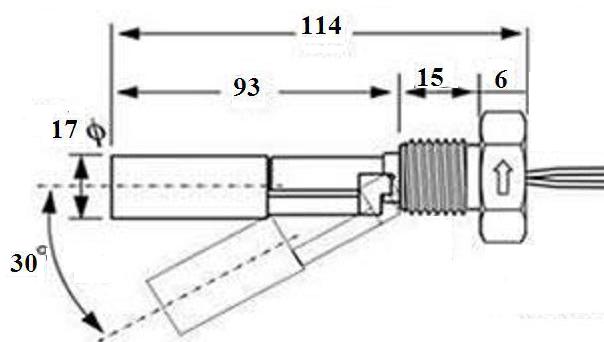

Float dimension :Dia.17 * 55
Material :SUS304
Application ration: above 0.65
Working pressure:20 Bar
Working temperature:-10～80℃
Accuracy:±2mm (in the water)
Repeatibility :±1mm (in the water)
Form switch: N.C./N.O
Working voltage:250Vac, 200Vdc
Contact capacity:0.7A/50W/SPST
Working life:107
Can be directly installed on the vessel wall point ,it is very convenient to install .
The switch adopt stainless steel material and isolate with the outside . So it has long working life ,
anti-explosion ,anti-corrosion and other characteristics .
