Type：CX-FLM-RF3001 small float level switch
Illustrate：CX-FLM-RF3001 Small float level switch (direct installation): This type flow switch adopt SUS304/316 stainless steel ,simple structure , conveniently usage’s level control parts , it does not have complex circuit and will not get disturbed . It has high temperature resistance...
CX-FLM-RF3001 Small float level switch (direct installation):
control parts , it does not have complex circuit and will not get disturbed . It has high temperature resistance,
long working life ,stable performance ,low price . Mainly used in hot water inside the appliance or mechanical
,such as water heaters ,water dispenser ,dishwasher ,electric water ,oil compressor ,air compressor and
other mechanical equipment.
Technical data :

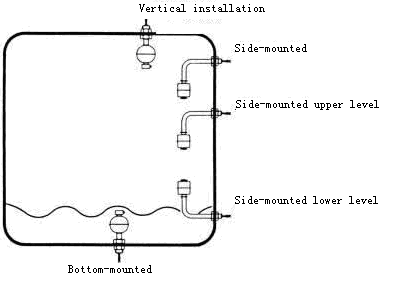

Installation :top or bottom-mounted (vertical +/-20 Celsius degree)
Installation screw :M10、can customize inG1/8”
Electric connection :300mm, UL1430 AWG22
Float dimension :Dia.28 * dia.9.50*28
Bar material :SUS304
Float material :SUS304
Working pressure :6 Bar
Working temperature :-10~80℃
Accuracy :+/-2mm (in the water)
Repeatability :+/-1mm (in the water)

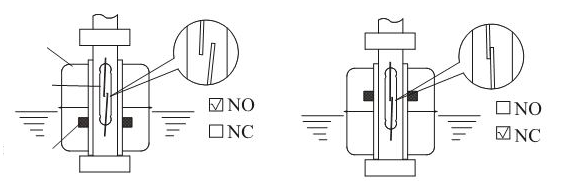

Switch type :N.C./N.O
Work voltage :220VAC
Work current :0.5A/0.7A
Switch power :10W/50W
Durability :100000 times

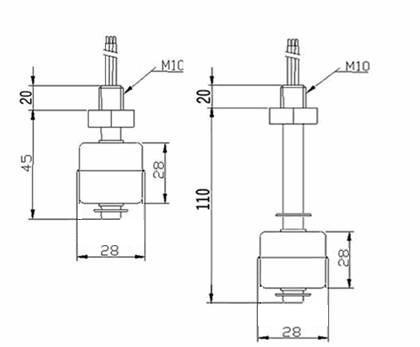

Diagram :
