Type：CX-FLM-RF3002 small float level switch
Illustrate：This type flow switch adopt SUS304/316 stainless steel ,simple structure , conveniently usage’s level control parts , it does not have complex circuit and will not get disturbed .
Small float level switch
CX-FLM-RF3002 small float level switch (side-mounted)
This type flow switch adopt SUS304/316 stainless steel ,simple structure , conveniently usage’s level
control parts , it does not have complex circuit and will not get disturbed . It has high temperature
resistance, long working life ,stable performance ,low price . Mainly used in hot water inside the appliance
or mechanical ,such as water heaters ,water dispenser ,dishwasher ,electric water ,oil compressor ,
air compressor and other mechanical equipment .
Technical data :

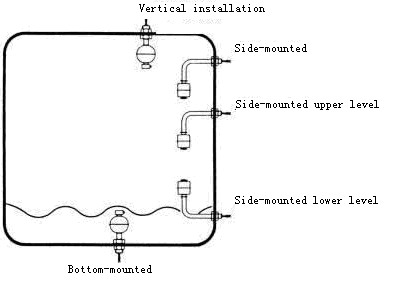

Installation :side-mounted
Installation screw :M10、can customize inG1/8”
Electric connection :300mm, UL1430 AWG22
Float dimension :Dia.28 * dia.9.50*28
Bar material :SUS304
Float material :SUS304
Working pressure :6 Bar
Working temperature :-20~80℃
Accuracy :+/-2mm (in the water)
Repeatability :+/-1mm (in the water)

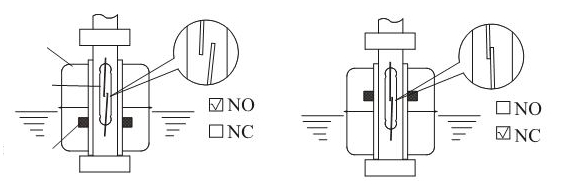

Switch type :N.C./N.O
Work voltage :220VAC
Work current :0.70A
Switch power :70W
Durability :100000 times

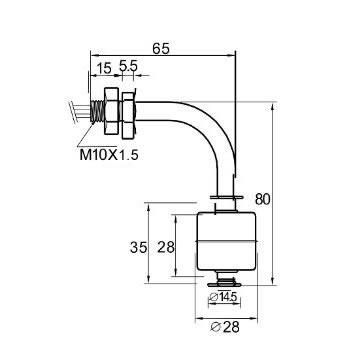

Diagram :
