CX-UFM-TDS-100M Ultrasonic Modular Flowmeter


Main Features
1.It can work alone without a LCD and keypad module
2.no pressure drop, no moving parts, no leaks and no contamination
3.Integrate the modules into a multi-channel flow meter then can measures several dozen of different pipes
4.Higher accuracy by measures the same pipe with all the channels
5.Easy to install it and don’t need special skills or tools

Technical Parameters

Display:	2x10 LCD indicator to display flow rate, flow speed, total flow
Operation	To set with 4 touch keys
Accuracy	Better than 1% accuracy  and  0.2% of repeatability
Application	Positive/negative/net flow or heat totaliser
Protocol	MODBUS/MBUS protocol
Input	4~20mA/PT100 platinum resistance input
Output	OCT(Pulse width 6~1000ms, default: 200ms) RS-485/4~20mA output/relay
Power	24VDC for module,85~264VAC/24VDC for display terminal
Protection	IP57
Software	can be upgrated with code-documents sent by email
Memory	512 days/120month/10years forward-flow / return-flow / Net-flow

Note:The memory will be kept in case of power lost

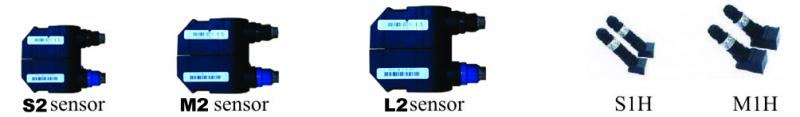

Sensor	S1type	M1type	L1 type	S1H	M1H
Pipe size(DN)	15-100	50-700	300-6000	15-100	50-700
Material	ABS			Special material for H -temp
Frequency	1MHz
Installation	V（N/ W）	V/ Z	Z	V/（N W）	V/ Z
calibration	Calibrated together with flowmeter
magnetism	Magnetic			No magnetic
Temperature	32℉～158℉（0-70℃）			32℉～320℉（0-160℃）
Protection class	IP65
Dimension(mm)	45*30*30	60*45*45	80*70*55	90*85*24	90*82*29
Weight(g)	75	250	650	94	150
Liquid types	Water. Sea water waste water. Chemical liquids. oil, crude oil. alcohol. beer. etc
Suspension concentration	≤20000ppm.may contain very small amount of air bubbles
Pipe material	All metals’ most plastics, fiber glass etc
Transducer cable	Standard length 5 meter×2.can be extended to 10 meter×2 or 15meter×2
