Type：CX-LTFM Turbine flow meter
Illustrate：1) SS304/SS316 material for turbine flow meter 2) ISO,CE,SGS standard for exporting 3) 9 consecutive years as gold supplier for export 4) More 80% meters for export

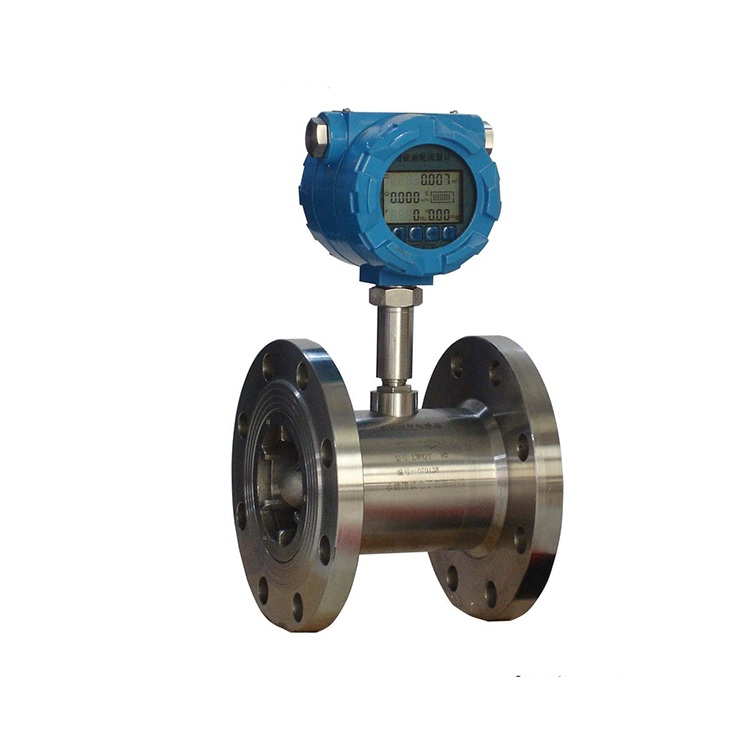

CX-LTFML liquid Turbine Flow meter
Below is brief instruction for Turbine flow meter
1.It can measure the liquid rate and total flow rate of low viscosity
2.Transmitting distance from sensor to display instrument up to 1000m.
3. Pressure loss is small, the impeller is anti-corrosion.
4. High accuracy and good repeatability
5.Vibration resistance and anti-electromagnetic interference
6.long working life and reliable performance and no zero drift
This is mainly technical Parameters for turbine flow meter
| DN | 4~200mm |
| Flow rate | 0.04 ~800m3 / h |
| Medium temp. | -20 ~ +120 ℃ |
| Ambient temp. | -20 ~ +55 ℃ |
| Power supply | Voltage: +5-24 VDC, Current: ≤ 10mA |
| Output | 4 ~ 20mA two-wire |
| Display | Local LCD indicator |
| Explosion | No or yes (optional) |
| Accuracy | 1% |
| Connection | Thread(DN4-DN40),flange(DN50-DN200) |
| Max pressure | 4.0Mpa(DN4-DN40),2.5Mpa(DN50-DN200) |
Note:1)For DN4-DN10, sensor was equipped with straight pipe and filter.
2)For sensor over DN15, straight pipe can be equipped per request.

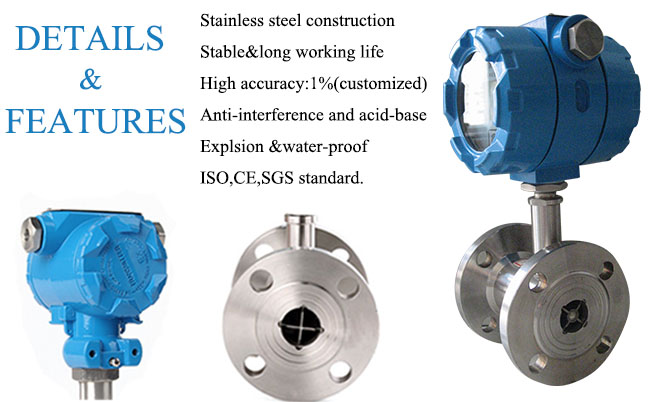

We do Best in every details to produce Best Turbine Flow Meter

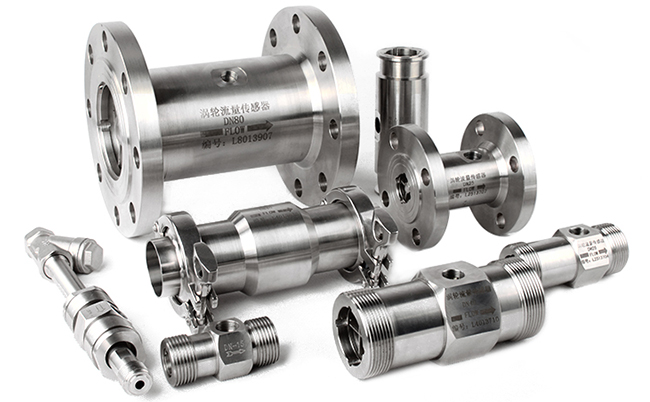

This photos is for various connection for Turbine flow meter

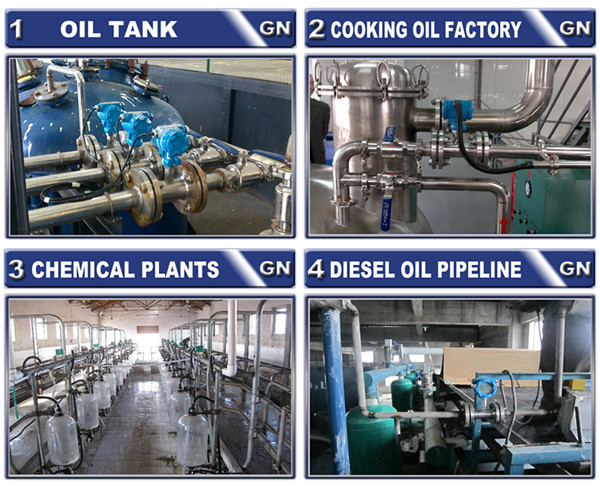

This is installation case of turbine flow meter for your reference.
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
