Type：CX-UFM-TDS Portable ultrasonic flow meter
Illustrate：1) DN15~DN6000 Portable ultrasonic flow meter 2) ISO,CE,SGS certificates for export 3) More 80% meters for export 4) 9 consecutive years as gold supplier for export

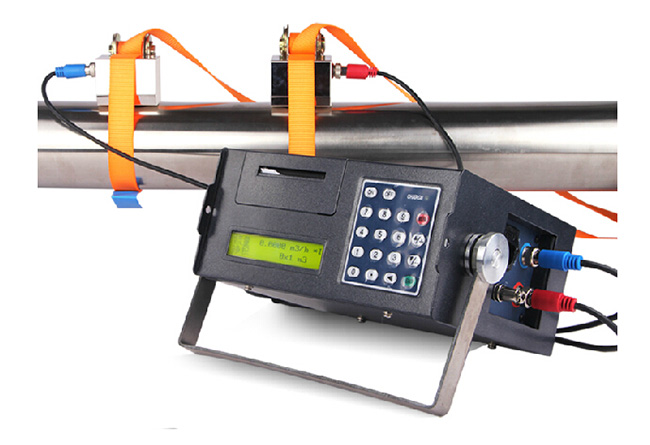

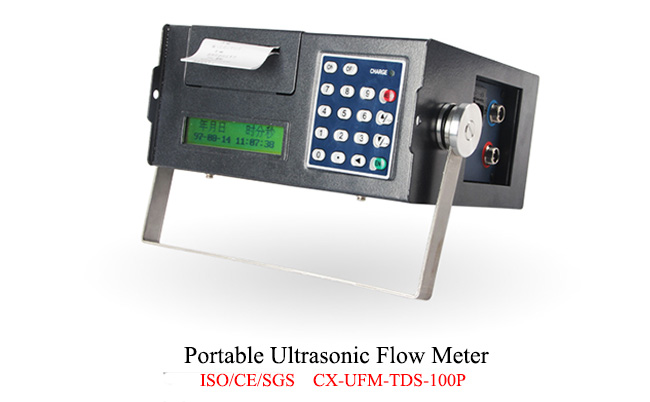

CX-UFM-TDS Portable ultrasonic flow meter
Below is brief introduction for Portable ultrasonic flow meter1.Accuracy:±1%
2.Repeatability:±0.2%
3.Easy to install outside the pipe

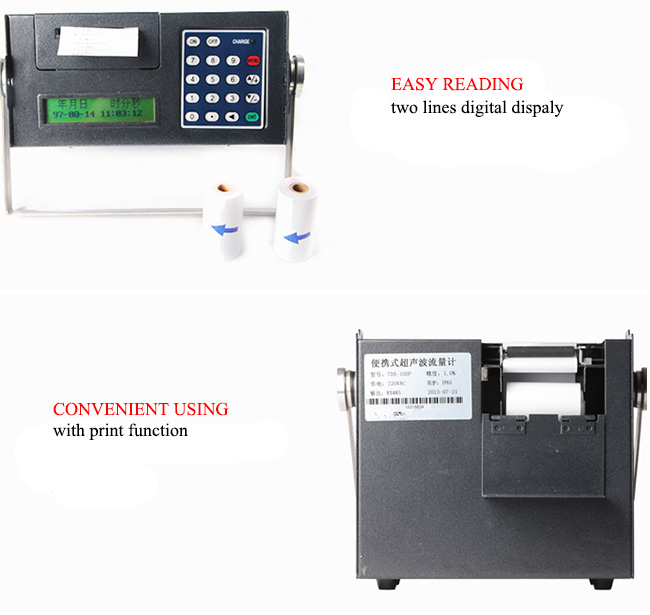

4.Two line display: Instantaneous flow rate,Accumulate flow,status
5.Built-in printer,to print in time and regularly;
6.Standard interface RS485 for data output and on-line operation
7.Self-diagnose to show the current status
8.Built-in Nickel-hydrogen cell supports 20 hours of operation
9.It also can measure heat by heat module
This is features for portable ultrasonic flow meter
1.It is widely used to measure liquid flow in various indus such as high accuracy, good repea tability tries thanks to its advantages
2.long-running cell,easy operation,built-in printer etc. The flowmeter is very industry like petrochemi cal, water, power, energy monitoring ect.
We do Best in every details to produce Best Portable ultrasonic flow meter .

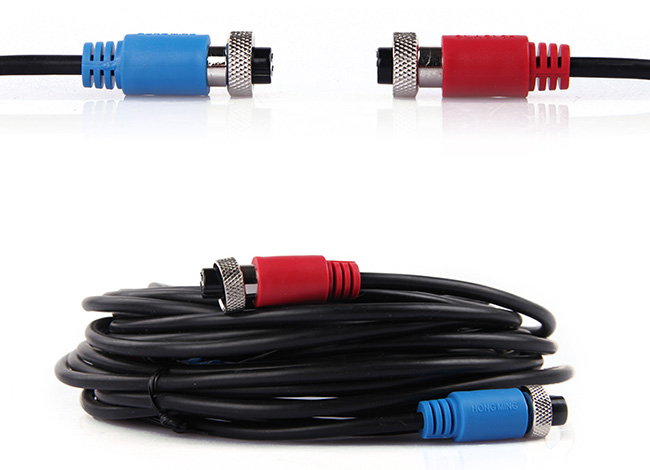

This is cable to connect transmitter with sensor for Portable ultrasonic flow meter

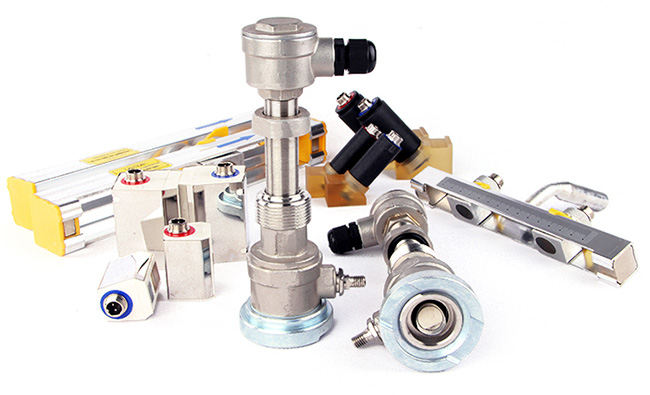

This is various sensors and support for portable ultrasonic flow meter.
|
Data |
S1Z |
M1Z |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size |
15-100 |
50-700 |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
Aluminum Alloy |
ABS |
Special material for hi-temp |
||||
|
Frequency |
1MHz |
||||||
|
Installation |
V(N,W)flange |
V,Zflange |
V(N,W)flange |
V,Zflange |
Zflange |
V(N,W)Flange |
V,Z flange |
|
Calibration |
Calibrated together with flowmeter |
||||||
|
Magnetic |
yes |
no |
|||||
|
Temperature |
0°C-70°C |
0°C-160°C |
|||||
|
IP |
IP65 |
||||||
|
Outsize |
200×25×25 |
280×40×40 |
45×30×30 |
60×45×45 |
80×70×55 |
90×85×24 |
90×82×29 |
|
WT(g/pair) |
250 |
1080 |
75 |
250 |
650 |
94 |
150 |
|
Medium |
Water,sea water,sewage,Alcohol,oil etc |
||||||
|
Turbidity |
≤10000ppm with little air bubble |
||||||
|
Pipe |
Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc. |
||||||
|
Pipe inner |
Rubber,Slurry,PP,PS,bakelite, PTFE |
||||||
|
Signal cable |
standard:5M×2,optinal:10M×2 or 15M×2... |
||||||

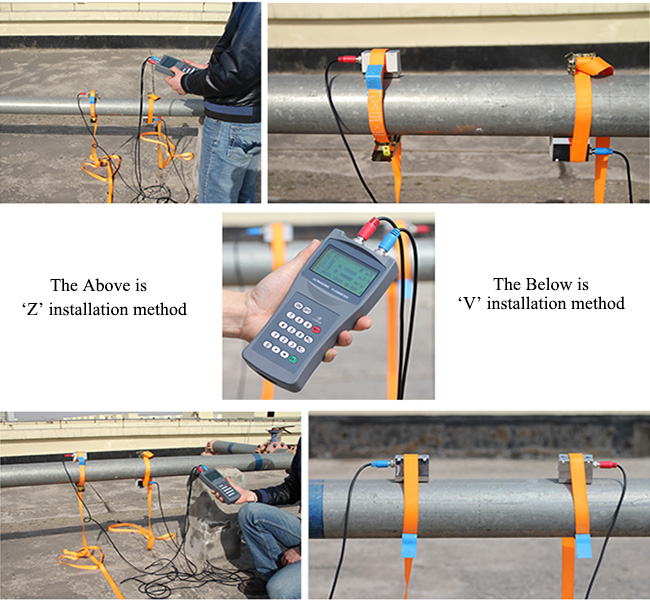

Below is installation sample of portable ultrasonic flow meter for your reference.
