Type： CX-PTFM-XKF510 Paddle wheel flow meter
Illustrate：1) ISO,CE,SGS certificates for Paddle wheel flow meter 2) 9 consecutive years as gold supplier for export 3) More 80% meters for export 4) More 30 year technology accumulation 5) benchmarking enterprises in Auto control&process instrument
CX-PTFM-XKF510 Paddle wheel flow meter
This is brief Introduction for paddle wheel flow meter
1) ISO,CE,SGS certificates for Paddle wheel flow meter
2) 9 consecutive years as gold supplier for export
3) More 80% meters for export
4) More 30 year technology accumulation.
5) benchmarking enterprises in Auto control&process instrument
6) XKF510 series addle wheel flow meter is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow.
7) XKF510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.
Technical Parameter for paddle wheel flow meter.
1) PVDF Impeller
2) Accuracy:+/-1%
3) O-ring material: EPDM
4) Output: pulse output,4-20mA output, local total&rate flow display.
5) Power supply:24VDC or 220VAC,battery supply.

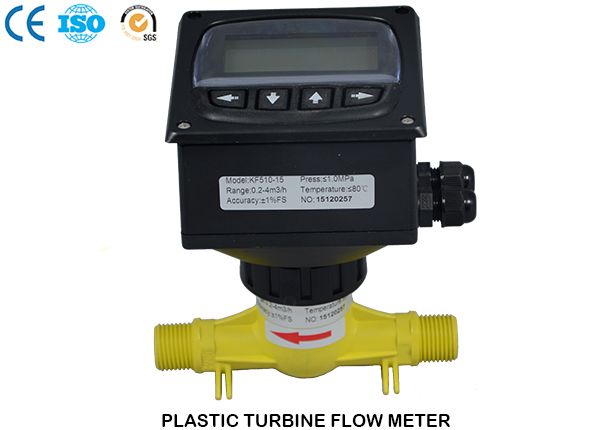

Main Feature for paddle wheel flow meter, it's called as plastic turbine flow meter
| DN(mm) | Flow range | Male thread | Working | Medium temperature | A(mm) | B(mm) |
| (L/min) | Pressure | ℃ | ||||
| 10 | 1～10 | G3/8" | 1 | <=80℃ | 150 | 120 |
| 2～20 | ||||||
| 3～30 | G3/8" | |||||
| 15 | 2～20 | G1/2" | 150 | 130 | ||
| 5～50 | ||||||
| 7～70 | G1/2" | |||||
| 20 | 3～30 | G3/4" | 150 | 135 | ||
| 6～60 | ||||||
| 10～100 | G3/4" | |||||
| 25 | 7～70 | G1" | 0.8 | 150 | 150 | |
| 10～100 | ||||||
| 20～200 | G1" | |||||
| 40 | 15～150 | G1 1/2" | 160 | 180 | ||
| 25～250 | ||||||
| 40～400 | G1 1/2" | |||||
| 50 | 15～150 | G2" | 160 | 180 | ||
| 50～500 | G2" | |||||
| 70～700 | G2" |

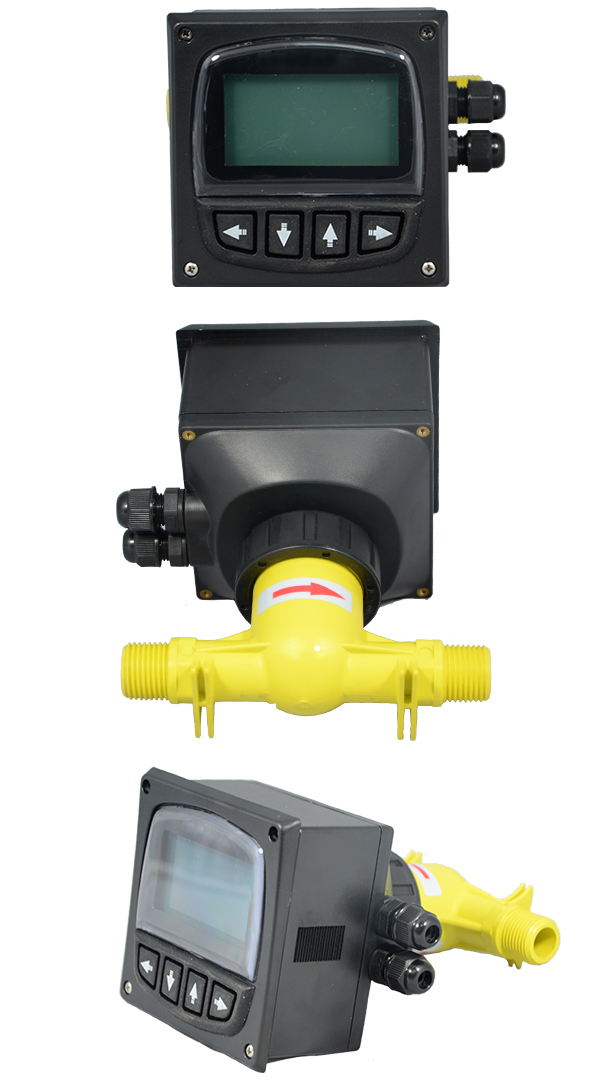

Panel Type Installation / Powered By Battery for paddle wheel flow meter.
| Feature of Inserted type | |||
| DN(mm) | Flow range | Working | Medium |
| (m3/h) | Pressure(Mpa) | temperature | |
| 50 | 3～30 | 0.8 | <=80℃ |
| 65 | 5～50 | ||
| 80 | 8～80 | ||
| 100 | 10～100 | ||
| 125 | 15～150 | ||
| 150 | 35～350 | ||
| 200 | 50～500 | ||
| 250 | 80～800 | ||
| 300 | 100～1000 | ||
We do Best in every details to produce Best Paddle wheel flow meter.
Below is Seperated type Paddle wheel flow meter.
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
