Type：thermocouple with right angle elbow
Illustrate：It is used on production spot with high temperature or harmful gas which has effect on junction box of thermocouple. Or that not suitable for direct horizontal or vertical installation.

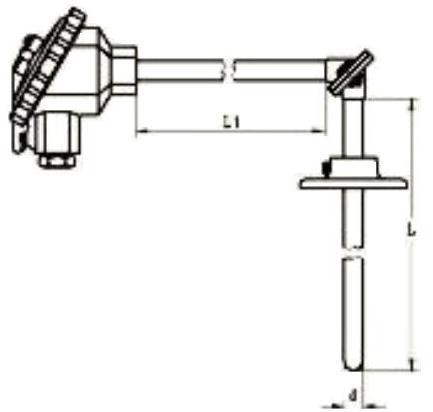

Thermocouple with Right Angle Elbow
It is used on production spot with high temperature or harmful gas which has effect on
junction box of thermocouple. Or that not suitable for direct horizontal or vertical installation.
Main technical parameter
Electric outlet: M20*1.5, NPT1/2
Accuracy class: Ⅰ,Ⅱ
Protection class: IP65
Normal pressure: normal pressure
Type and specification
| Type | Graduation | Measuring Range ℃ |
Thermal Response Time |
Protection Tube Material |
Specification L*1 |
| WRN-530 | K | 0-800 | <90S | 1Cr18Ni9Ti |
300*150 350*200 400*250 450*300 500*350 550*500 600*450 650*500 |
| WRN2-530 | |||||
| WRE-530 | E | 0-600 | |||
| WRE2-530 | |||||
| WRN-530 | K | 0-800 | |||
| WRN2-530 | |||||
| WRE-530 | E | 0-800 | |||
| WRE2-530 |
