Type：anti-spray type armored thermocouple
Illustrate： protection class of junction box IP65 class-1 thermocouple shall be ordered according to agreements protection tube material shall be considered as 1Cr18Ni9Ti if no indicator
Anti-spray Type Armored Thermocouple
| Type | Graduation |
Measuring Range ℃ |
Protection Tube Material |
Mounting & Fixing Device |
|
WRPK-121 WRPK2-121 |
S | 0-1300 | GH3039 | without fixing device |
|
WRMK-121 WRMK2-121 |
N | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WRNK-121 WRNK2-121 |
K | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WREK-121 WREK2-121 |
E | 0-600 | 1Cr18Ni9Ti | |
|
WRCK-121 WRCK2-121 |
T | 0-350 | ||
|
WRFK-121 WRFK2-121 |
J | 0-500 | ||
|
WRPK-221 WRPK2-221 |
S | 0-1300 | GH3039 |
threaded head with fixed fastener |
|
WRMK-221 WRMK2-221 |
N | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WRNK-221 WRNK2-221 |
K | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WREK-221 WREK2-221 |
E | 0-600 | 1Cr18Ni9Ti | |
|
WRCK-221 WRCK2-221 |
T | 0-350 | ||
|
WRFK-221 WRFK2-221 |
J | 0-500 | ||
|
WRPK-321 WRPK2-321 |
S | 0-1300 | GH3039 |
threaded head with movable fastener |
|
WRMK-321 WRMK2-321 |
N | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WRNK-321 WRNK2-321 |
K | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WREK-321 WREK2-321 |
E | 0-600 | 1Cr18Ni9Ti | |
|
WRCK-321 WRCK2-321 |
T | 0-350 | ||
|
WRFK-321 WRFK2-321 |
J | 0-500 | ||
|
WRPK-421 WRPK2-421 |
S | 0-1300 | GH3039 |
flange with fixed fastener |
|
WRMK-421 WRMK2-421 |
N | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WRNK-421 WRNK2-421 |
K | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WREK-421 WREK2-421 |
E | 0-600 | 1Cr18Ni9Ti | |
|
WRCK-421 WRCK2-421 |
T | 0-350 | ||
|
WRFK-421 WRFK2-421 |
J | 0-500 | ||
|
WRPK-521 WRPK2-521 |
S | 0-1300 | GH3039 |
flange with movable fastener |
|
WRMK-521 WRMK2-521 |
N | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WRNK-521 WRNK2-521 |
K | 0-1100 | GH3030 | |
| 0-800 | 1Cr18Ni9Ti | |||
|
WREK-521 WREK2-521 |
E | 0-600 | 1Cr18Ni9Ti | |
|
WRCK-521 WRCK2-521 |
T | 0-350 | ||
|
WRFK-521 WRFK2-521 |
J | 0-500 |
- protection class of junction box IP65
- class-1 thermocouple shall be ordered according to agreements
- protection tube material shall be considered as 1Cr18Ni9Ti if no indicator

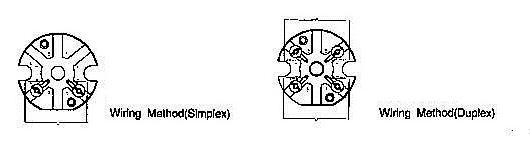

Wiring Method
