Type：handle type armored thermocouple
Illustrate：Example: Armored thermocouple, type K, class 1, threaded head with fastener protection tube GH3030, 450mm for insert length WRNK-231 L*1=450*300 class 1 protection GH3030.
Handle type armored thermocouple
| Description | Type | Graduation |
Outer Diameter |
Length | Measuring End |
| NiCrSi-NiSi | WRMK-181 | N | Φ3 | 300 | Insulation type |
| NiCr-NiSi | WRNK-181 | K | |||
| NiCr-CuNi | WREK-181 | E | |||
| Cu-CuNi | WRCK-181 | T | |||
| Fe-CuNi | WRFK-181 | J | |||
| NiCrSi-NiSi | WRMK-182 | N |
shell-connecting type |
||
| NiCr-NiSi | WRNK-182 | K | |||
| NiCr-CuNi | WREK-182 | E | |||
| Cu-CuNi | WRCK-182 | T | |||
| Fe-CuNi | WRFK-182 | J |

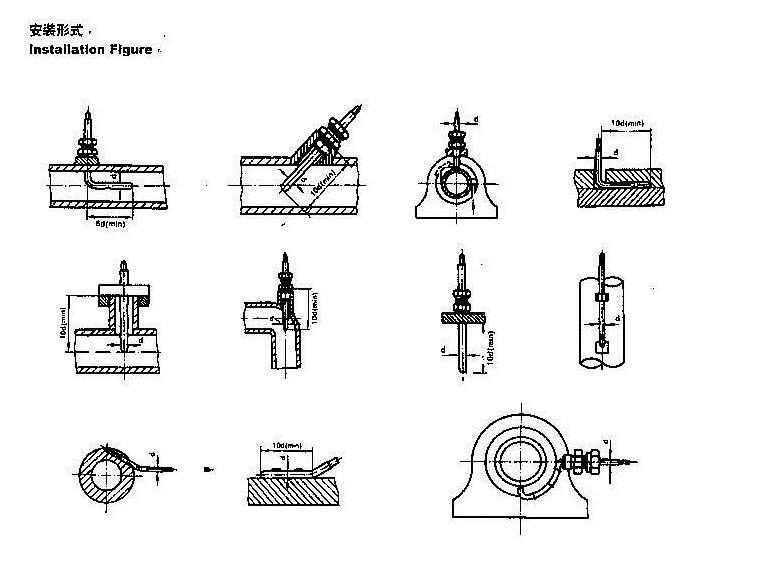

Installation figure
Notices in type selection
Type
Graduation
Accuracy class
Mounting & fixing method
Protection tube material
Length or insert length
Example: Armored thermocouple, type K, class 1, threaded head with fastener protection tube GH3030, 450mm for insert length WRNK-231 L*1=450*300 class 1 protection GH3030.
