Type：CXPTB-220 level transmitter （immersion type）
Illustrate：The consummate encapsulation technology and perfect assembly process insure the quality and performance of this series with high stability, leakage proof. Lever transmitter CXPTB-220 (Standard immersion type) can be used for liquid measuring for petroleum, metallurgy, Hydraulic, city water supply, hygrometry and etc
CXPTB-220 Level Transmitter （Immersion type）
Description
The consummate encapsulation technology and perfect assembly process insure the quality and performance of this series with high stability, leakage proof. Lever transmitter CXPTB-220 (Standard immersion type) can be used for liquid measuring for petroleum, metallurgy, Hydraulic, city water supply, hygrometry and etc
Application
1. Level measuring
2. Building automation, constant pressure water supply
3. Metallurgy, machine, Environmental Protection
4. Medical treatment, vacuum equipment
Feature
u Wide measuring ranges
u Corrosion Proof, moist proof, frost proof, seepage prevention
u Various signal output for industrial standard, flexible calibration
u High accuracy, good stability

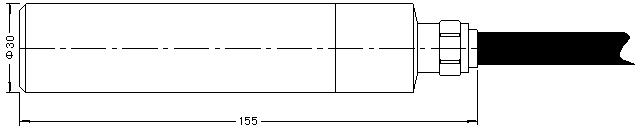

Dimenson
Remarks:
The dimensions only for you reference, and you can choose other electrical connector and process connector.
Specification
| Range： | 0….1mH2O to 0….100mH2O |
| Accuracy： | 0.5%FS |
| Nonlinearity： | 0.2%FS |
| Stability： | 0.2%FS/ Y |
| Output： | 4-20mA（2 Wire），0-5V， 0-10V（3 Wire） |
| Voltage： | 24(12~36)VDC (Amplify signal ) |
| Operation Temp： | -10~80℃ |
| Compensated temp： | 0~70℃ |
| Overload pressure： | 150%FS |
| Medium material： | Stainless steel housing |
| Electric connection： | Vented Cable ,Submersion type |
| Protection Class： | IP68 |
Electric Connection Mode
| Electric connector | Output：4-20mA | Output：0-10V, 0-5V | ||
 |
Function | Color | Function | Color |
| E+ | Red | E+ | Red | |
| S+ | Black | E- | Yellow | |
| --- | --- | S+ | Blue | |
| --- | --- | S- | White | |
Ordeing Guide
| Model | Range(mH2O) | Output | Cable length | Other requirement |
| CXPTB-220 | --- | --- | --- | --- |
| Example：CXPTB-220-20m H2O -4/20mA-25m cable | ||||
