Type：CXPTB-221 level transmitter（local display）
Illustrate：Designed by digital circuit compensated technology, high-accuracy and high-stability Level Transmitter CXPTB-221 with Local display is suitable for liquid measuring and controlling in Hydraulic fields, Environment Protecting fields, Industrial process controlling fields, Pharmaceutical fields and so on.
CXPTB-221 Level Transmitter（Local Display）
Description
Designed by digital circuit compensated technology, high-accuracy and high-stability Level Transmitter CXPTB-221 with Local display is suitable for liquid measuring and controlling in Hydraulic fields, Environment Protecting fields, Industrial process controlling fields, Pharmaceutical fields and so on.
Application
l Hydraulic fields, environment protecting fields
l Industrial process controlling fields
l Petroleum, chemistry industry, medicine
Feature
l Digital circuit compensated technology
l Moist proof, leakage proof
l Local display
l High accuracy, good stability

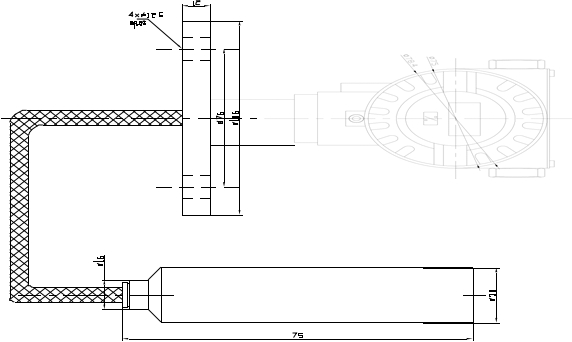

Dimension
Remarks: Above dimension only for reference, we can tailor the product as you required.
Specification
l Range0….1mH2O to 0….50mH2O
l Accuracy0.5%FS
l Nonlinearity0.2%FS
l Stability0.2%FS/year
l Output4-20mA（2 Wire）, 0-5V；0-10V（3 Wire）
l Input24(12~36)VDC (Amplify signal)
l Operation Temp-10~80℃
l Compensated temp0~70℃
l Overload pressure150%FS
l Medium materialHousing: stainless steel
l Electric connectionVented Cable ,Submersion type
l Protection classIP68

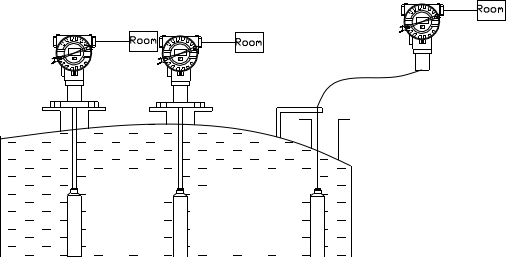

Installation
Installat ln contalner
Ordering Guide
| Model | Range(mH2O) | Output |
Cable Length |
Other Requirement |
| CXPTB-221 | --- | --- | --- | --- |
| Example：CXPTB-221-20m H2O -4/20mA-25m cable | ||||
