Type： CXPTB-222 level transmitter（insert type）
Illustrate：Level transmitter CXPTB-222 design with insert installation type, it is suitable for level measuring of all kinds of liquid of not-well－closed container below 80℃, and also suitable in the pressure measuring and controlling in the production process of Biochemical products, storage, food , Pharmaceuticals and so on .
CXPTB-222 Level Transmitter（Insert Type）
Description
Level transmitter CXPTB-=222 design with insert installation type, it is suitable for level measuring of all kinds of liquid of not-well－closed container below 80℃, and also suitable in the pressure measuring and controlling in the production process of Biochemical products, storage, food , Pharmaceuticals and so on .
Application
Biochemical products, storage
food , Pharmaceuticals
pressure measuring and controlling
Feature
Corrosion proof, moist proof, leakage proof
Stainless steel armored-cable packing
Casting aluminum circuitry
Screw thread and flange type
Local display & calibration
High accuracy, good stability

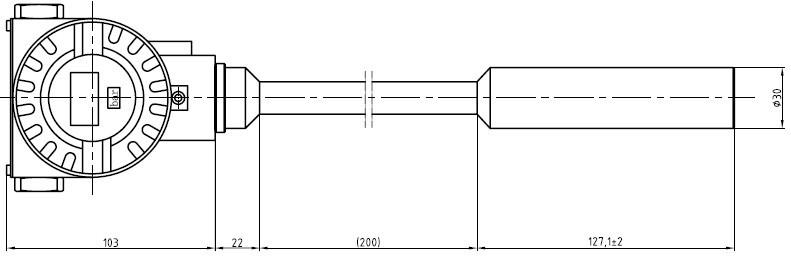

Dimension
Specification
SpecRange:0~5mH2O
Accuracy:0.25%FS；0.5%FS Nonlinearity:0.2%FS
Stability:0.2%FS/Y
Output:4-20mA（2 wire）, 0-5V；0-10V（3 wire）
Input voltage:24(12~36)VDC (Amplify signal) Operating Temperature:-40~80℃
Compensated temperature:0~80℃
Overload pressure:150%FS
Medium material:Housing: Stainless steel
Explosion-Proof Grade:ExiaII CT4
Electric connector:Vented cable, insert screw thread ,insertflange type
Protection Grade:IP68ification
Electric Connection Mode
| Electric connection | Output：4-20mA | Output：0-10V, 0-5V | ||
| Function | Color | Function | Color | |
| E+ | E+ | Red | ||
| S+ | Black | E- | Yellow | |
| --- | --- | S+ | Blue | |
| --- | --- | S- | White | |
Ordering Guide
| Model | Range(mH2O) | Output |
Cable length |
Other requirement |
| CXPTB-222 | --- | --- | --- | --- |
| Example：CXPTB-222-20m H2O -4/20mA-25m cable | ||||
