Type：CXPTB-224 level transmitter (corrosion proof type)
Illustrate：Chemical Sewage treatment and so on Pressure chilled water-cooling Process control waste digesters
CXPTB-224 Level Transmitter (Corrosion proof type)
Description
CXPTB-224 series capacitive level transmitter is newly designed model for level measuring in our company. It can convert various changes of level into standard current signal, so as to transferring to the operating control room and so as for instrument’s or computer device’s converging display, alarm or auto-control. With excellent construction and installation mode, this series is suitable for continuous level measuring in special conditions under high pressure, strong corrosion, easy-to-crystallization.easy-to-clogging，freeze protecting and etc..
CXPTB-224 series capacitive level transmitter is newly designed model for level measuring in our company. It can convert various changes of level into standard current signal, so as to transferring to the operating control room and so as for instrument’s or computer device’s converging display, alarm or auto-control. With excellent construction and installation mode, this series is suitable for continuous level measuring in special conditions under high pressure, strong corrosion, easy-to-crystallization.easy-to-clogging，freeze protecting and etc..
Application
Chemical
Sewage treatment and so on
Pressure chilled water-cooling
Process control waste digesters
Feature
Simple construction and high reliability
Various signal output
Strong corrosion proof

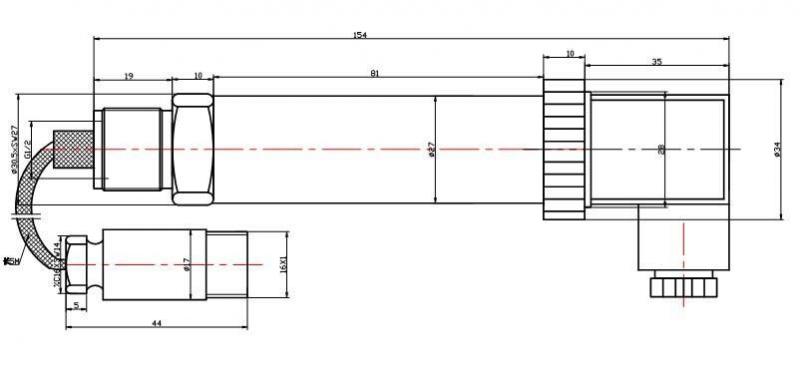

Dimension
Specification
Range:0 to 50mH20
Accuracy: 0.5%FS,1.0%FS
Output:0-10V; 0-5V ; 1-5V; 4-20mA,
Input Voltage:24VDC
Operating Temperature:-40℃~80℃
Temperature compensation: -10℃~60℃
Over Pressure:150%FS
House Material:316LSS,Ta,Teflon (PTFE)
Cable Material:Teflon
Electric Connector: DIN43650
Process Connector: G1/2, 1/2NPT, M14*1.5(Optional)

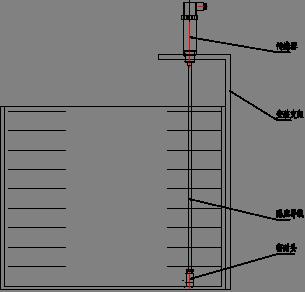

Mounting
Mount with flange or screw Mount with screw thread on
thread on the closed container the opened container
Wiring Code
| Signal Output | 4-20mA (2 Wires) | 0-5V, 0.5-4.5V,1-5V (3 Wires) | ||
|
Wiring Code  |
1 | Input + | 1 | Input + |
| 2 | Input - | 2 | Input/output - | |
| 3 | None | 3 | Output + | |
| 4 | Ground | 4 | Ground | |
|
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. |
||||
| Model | Range(mH2O) | Output |
Cable length |
Other requirement |
| CXPTB-224 | --- | --- | --- | --- |
| Example：CXPTB-224-3mH20-4/20mA | ||||
