turbine flowmeter working principle
sales01@cxflowmeter.com

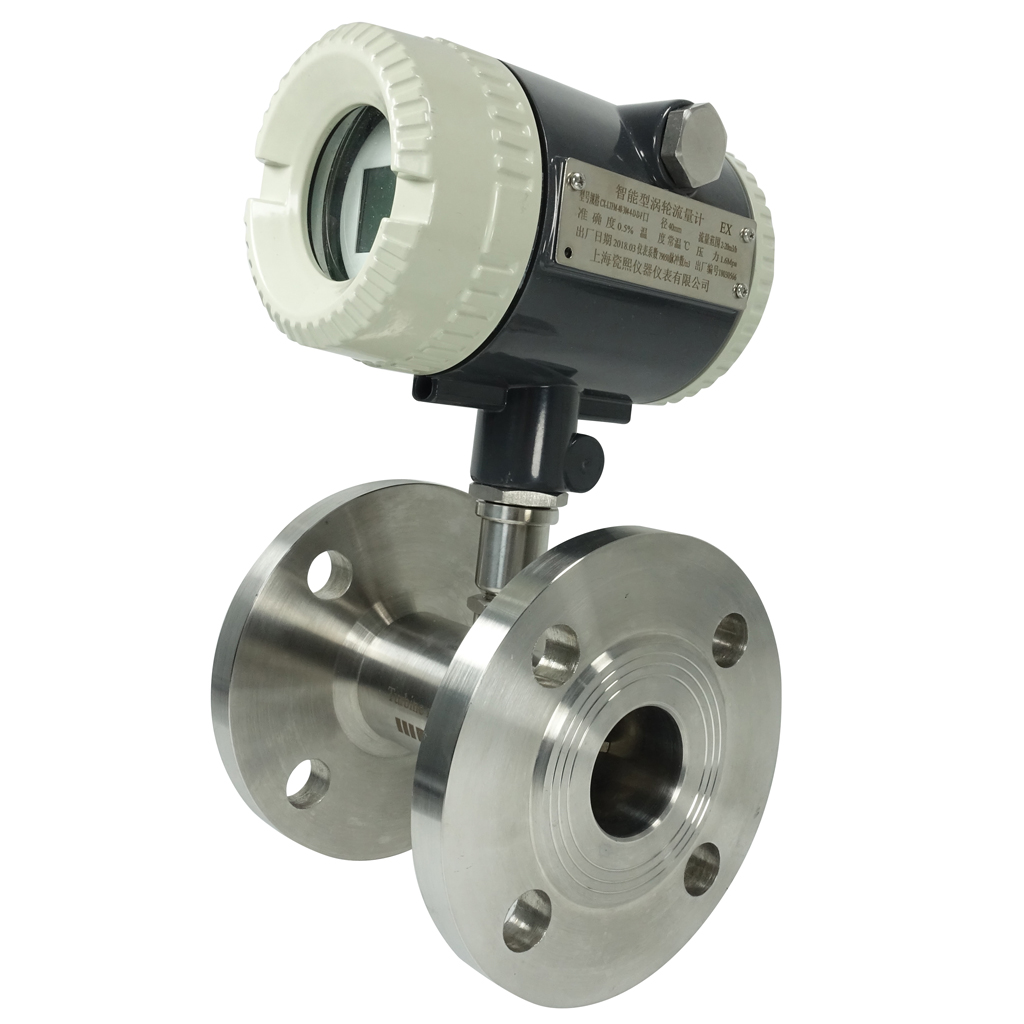

Turbine flow meter are often used to measure water, diesel, methanol and other impurity-free, non-corrosive liquids. The utility model has the advantages of simple structure, light weight, high precision and convenient installation. The working principle of the turbine flowmeter is to place a turbine at the center of the pipeline, and the two ends are supported by bearings. When the fluid passes through the pipeline, it impacts the blades of the turbine, generating a driving force for the turbine, and then allowing the turbine to overcome the friction torque and fluid resistance torque. generate rotation. Within a certain flow range, for a certain fluid medium viscosity, the rotation angle of the turbine is proportional to the fluid flow rate, so that the fluid flow rate can be calculated.
Turbine flow meter are often used to measure water, diesel, methanol and other impurity-free, non-corrosive liquids. The utility model has the advantages of simple structure, light weight, high precision and convenient installation. The working principle of the turbine flowmeter is to place a turbine at the center of the pipeline, and the two ends are supported by bearings. When the fluid passes through the pipeline, it impacts the blades of the turbine, generating a driving force for the turbine, and then allowing the turbine to overcome the friction torque and fluid resistance torque. generate rotation. Within a certain flow range, for a certain fluid medium viscosity, the rotation angle of the turbine is proportional to the fluid flow rate, so that the fluid flow rate can be calculated.
Turbine flowmeter has a variety of transmission methods, including three-wire pulse output, two-wire 4-20mA current output, on-site display and output 4-20mA, battery power supply, etc. Different transmission methods are suitable for different applications.
If you have other questions and ideas about the turbine flow meter, and want to know the specific model parameters and quotations of the turbine flowmeter produced by cixi, please contact winny: sales01@cxflowmeter.com
